Aldol condensation of phenanthrene-9-carboxaldehyde and acetone
SyntheticPage 774
DOI:
Submitted: January 28, 2015, published: January 29, 2015
Authors
Jean-Claude Bradley
Matthew McBride (mcbridemj@gmail.com)
A contribution from

Chemicals
Phenanthrene-9-carboxaldehyde (Sigma Aldrich, 97%)
Acetone (Sigma Aldrich, 99%)
Sodium Hydroxide (NaOH)
Methanol
Acetone (Sigma Aldrich, 99%)
Sodium Hydroxide (NaOH)
Methanol
Procedure

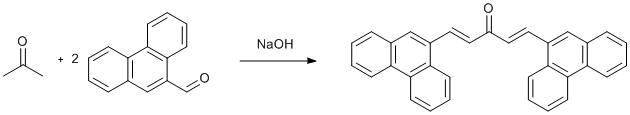

A solution of acetone (0.0171 g, 0.29 mmol, 1.0 eq) in methanol (1 mL) at room temperature was added to a stirred solution of phenanthrene-9-carboxaldehyde (0.154 g, 0.75 mmol, 2.5 eq) in methanol (45 mL). NaOH (0.9996 g, 25.00 mmol, 84.8 eq) was dissolved into the reaction mixture. The reaction mixture was stirred at room temperature for 72 hours. The precipitated product was recovered by suction filtration, washed 1x with 2-3mL of water and washed 1x with 2-3mL of methanol, and dried over suction. The crude product was recrystallized in benzene, cooled to room temperature, washed 1x with 2-3mL of benzene, dried over suction, and recovered (0.0242 g, 19%) as yellow crystals (mp 264-265°C).
Author Comments
•The product was insoluble in methanol allowing for recovery by filtration.
•A trace impurity of benzene was present in the final product as determined by the NMR spectrum.
•A trace impurity of benzene was present in the final product as determined by the NMR spectrum.
Data
1H NMR Spectrum (500 MHz, CDCl3): δ 8.78 (d, 2H), δ 8.72 (d, 2H), δ 8.68 (d, J = 16.5 Hz, 2H), δ 8.33 (d, 2H), δ 8.16 (s, 2H), δ 7.98 (d, 2H), δ 7.69 (m, 8H), δ 7.36 (d, J = 15.5 Hz, 2H)
Lead Reference
M. J. McBride, J. C. Bradley. UsefulChem, Experiment 286. http://usefulchem.wikispaces.com/EXP286
Keywords
Aldol Condensation
